Augmentations

AudibleLight supports two kinds of augmentations, which each apply to different objects:

1. EventAugmentation objects are applied to Event objects, prior to spatializing these.

   • Typically, these manipulate some aspect of the underlying audio file used by the Event, such as by applying equalization, fade-ins or fade-outs, or distortion.

2. SceneAugmentation objects are applied to an entire Scene, after spatializing the audio

   • These augmentations manipulate the entire spatial audio, perhaps by masking particular frequency bands or time spans.

AudibleLight provides many Event and Scene augmentations inside audiblelight.augmentations, that should be usable in many different circumstances. But if you want to define your own augmentation, you can also subclass either EventAugmentation or SceneAugmentation and provide your own logic.

Event Augmentations

Augmentations can be added to Event objects in a number of ways.

Add augmentations when creating an Event

The simplest way is to provide a list of EventAugmentation classes or instances to Scene.add_event, as follows:

# Import dependencies
from audiblelight import config, custom_types, utils
from audiblelight.augmentation import Phaser, Distortion, Delay, EventAugmentation
from audiblelight.core import Scene

# Create a Scene object
sc = Scene(
    duration=50,
    mesh_path=utils.get_project_root() / "tests/test_resources/meshes/Oyens.glb",
    fg_path=utils.get_project_root() / "tests/test_resources/soundevents",
    max_overlap=1,  # no overlapping sound events allowed
)

# Add in an event with augmentations
sc.clear_events()
ev = sc.add_event(
    event_type="static",
    augmentations=[
        Phaser,
        Distortion,
        Delay
    ]
)

2025-08-20 11:21:31.498 | INFO     | audiblelight.core:add_event:705 - Event added successfully: Static 'Event' with alias 'event000', audio file '/home/huw-cheston/Documents/python_projects/AudibleLight/tests/test_resources/soundevents/femaleSpeech/242663.wav' (unloaded, 3 augmentations), 1 emitter(s).

print(ev.get_augmentations())

[{
    "name": "Phaser",
    "sample_rate": 44100,
    "rate_hz": 6.348728068763655,
    "depth": 0.41020684362187443,
    "centre_frequency_hz": 4412.609900797627,
    "feedback": 0.3510782699274606,
    "mix": 0.4712792025582654
}, {
    "name": "Distortion",
    "sample_rate": 44100,
    "drive_db": 20.60130549467661
}, {
    "name": "Delay",
    "sample_rate": 44100,
    "delay_seconds": 0.4051989196838825,
    "feedback": 0.36445447690299937,
    "mix": 0.3234186049147648
}]

We can see now that we’ve added a Phaser, Distortion, and Delay to the augmentation. Calling Event.load_audio() will load in the audio and apply the effects in this order:

from IPython.display import Audio

Audio(data=ev.load_audio(), rate=ev.sample_rate)

By default, the parameters for each augmentation will be sampled at random from within an acceptable range of default values. We can override this by passing in a list of EventAugmentation instances, as follows:

# Add in an event with augmentations, with particular parameters
sc.clear_events()
ev2 = sc.add_event(
    event_type="static",
    augmentations=[
        Phaser(rate_hz=100, mix=0.1),
        Distortion(drive_db=50),
        Delay(feedback=0.9)
    ]
)

2025-08-20 11:21:32.874 | INFO     | audiblelight.core:add_event:705 - Event added successfully: Static 'Event' with alias 'event000', audio file '/home/huw-cheston/Documents/python_projects/AudibleLight/tests/test_resources/soundevents/maleSpeech/93853.wav' (unloaded, 3 augmentations), 1 emitter(s).

Now, when we print the Event, we can see that the parameters of the augmentation are set exactly as specified.

print(ev2.get_augmentations())

[{
    "name": "Phaser",
    "sample_rate": 44100,
    "rate_hz": 100.0,
    "depth": 0.6644394348227314,
    "centre_frequency_hz": 3489.427860809392,
    "feedback": 0.8854213590044991,
    "mix": 0.1
}, {
    "name": "Distortion",
    "sample_rate": 44100,
    "drive_db": 50.0
}, {
    "name": "Delay",
    "sample_rate": 44100,
    "delay_seconds": 0.9133643458982261,
    "feedback": 0.9,
    "mix": 0.11900467672432065
}]

For more information on the valid parameters for every Augmentation, see the corresponding documentation in audiblelight.augmentation

Add augmentations after creating an Event

We might want to add augmentations to an Event after placing it within a Scene. This is where Event.register_augmentations() comes in:

sc.clear_events()
sc.add_event(
    event_type="static",
    alias="needs_augments"
)
needs_augments = sc.get_event("needs_augments")

2025-08-20 11:21:33.429 | INFO     | audiblelight.core:add_event:705 - Event added successfully: Static 'Event' with alias 'needs_augments', audio file '/home/huw-cheston/Documents/python_projects/AudibleLight/tests/test_resources/soundevents/telephone/431669.wav' (unloaded, 0 augmentations), 1 emitter(s).

needs_augments.register_augmentations(
    [
        Phaser(rate_hz=100, mix=0.1),
        Distortion(drive_db=50),
    ]
)
print(needs_augments.get_augmentations())

[{
    "name": "Phaser",
    "sample_rate": 44100,
    "rate_hz": 100.0,
    "depth": 0.5290003312984538,
    "centre_frequency_hz": 6069.404969013234,
    "feedback": 0.5031044478572108,
    "mix": 0.1
}, {
    "name": "Distortion",
    "sample_rate": 44100,
    "drive_db": 50.0
}]

The Event.register_augmentations function is additive, so we can always add more augmentations later:

needs_augments.register_augmentations(Delay(feedback=0.9))
print(needs_augments.get_augmentations())

[{
    "name": "Phaser",
    "sample_rate": 44100,
    "rate_hz": 100.0,
    "depth": 0.5290003312984538,
    "centre_frequency_hz": 6069.404969013234,
    "feedback": 0.5031044478572108,
    "mix": 0.1
}, {
    "name": "Distortion",
    "sample_rate": 44100,
    "drive_db": 50.0
}, {
    "name": "Delay",
    "sample_rate": 44100,
    "delay_seconds": 0.6159262915190783,
    "feedback": 0.9,
    "mix": 0.1447728910045774
}]

And, there’s always Event.clear_augmentations to remove all augmentations (or Event.clear_augmentation(idx) to remove at a particular idx):

needs_augments.clear_augmentations()
print(len(needs_augments.get_augmentations()))

0

Randomly sampling EventAugmentations

Having to explicitly pass a list of particular EventAugmentations can be difficult in large-scale data generation pipelines.

Instead, we can simply pass an integer number of augmentations to add when creating an Event, as follows:

sc.clear_events()
three_augments = sc.add_event(
    event_type="static",
    alias="has_3_augments",
    augmentations=3
)

2025-08-20 11:21:34.116 | INFO     | audiblelight.core:add_event:705 - Event added successfully: Static 'Event' with alias 'has_3_augments', audio file '/home/huw-cheston/Documents/python_projects/AudibleLight/tests/test_resources/soundevents/femaleSpeech/236657.wav' (unloaded, 3 augmentations), 1 emitter(s).

print(len(three_augments.get_augmentations()))

3

But how do we choose which augmentations will be selected?

By default, we’ll randomly sample N augmentations from audiblelight.augmentation.ALL_EVENT_AUGMENTATIONS, which includes the following EventAugmentation types:

from audiblelight.augmentation import ALL_EVENT_AUGMENTATIONS

print(ALL_EVENT_AUGMENTATIONS)

[<class 'audiblelight.augmentation.LowpassFilter'>, <class 'audiblelight.augmentation.HighpassFilter'>, <class 'audiblelight.augmentation.MultibandEqualizer'>, <class 'audiblelight.augmentation.Compressor'>, <class 'audiblelight.augmentation.Chorus'>, <class 'audiblelight.augmentation.Delay'>, <class 'audiblelight.augmentation.Distortion'>, <class 'audiblelight.augmentation.Phaser'>, <class 'audiblelight.augmentation.Gain'>, <class 'audiblelight.augmentation.GSMFullRateCompressor'>, <class 'audiblelight.augmentation.MP3Compressor'>, <class 'audiblelight.augmentation.PitchShift'>, <class 'audiblelight.augmentation.TimeShift'>, <class 'audiblelight.augmentation.TimeWarpRemove'>, <class 'audiblelight.augmentation.TimeWarpSilence'>, <class 'audiblelight.augmentation.TimeWarpDuplicate'>, <class 'audiblelight.augmentation.TimeWarpReverse'>, <class 'audiblelight.augmentation.Preemphasis'>, <class 'audiblelight.augmentation.Deemphasis'>, <class 'audiblelight.augmentation.Fade'>, <class 'audiblelight.augmentation.Clipping'>, <class 'audiblelight.augmentation.Bitcrush'>, <class 'audiblelight.augmentation.Limiter'>, <class 'audiblelight.augmentation.HighShelfFilter'>, <class 'audiblelight.augmentation.LowShelfFilter'>]

It’s entirely possible that we might not want to use all of these augmentations. Instead, we can control the types of EventAugmentations that will be sampled by passing in a list when initialising the Scene:

from audiblelight.augmentation import LowpassFilter, LowShelfFilter, HighpassFilter, HighShelfFilter

# Create a Scene object
filters_only = Scene(
    duration=50,
    mesh_path=utils.get_project_root() / "tests/test_resources/meshes/Oyens.glb",
    fg_path=utils.get_project_root() / "tests/test_resources/soundevents",
    max_overlap=1,  # no overlapping sound events allowed
    event_augmentations=[
        LowpassFilter,
        LowShelfFilter,
        HighpassFilter,
        HighShelfFilter
    ]
)

CreateContext: Context created

Material for category 'default' was not found. Using default material instead.

Now, when we create an Event for this Scene, the only augmentations we can sample from will be the ones passed in to event_augmentations.

filters_only.clear_events()
filtered_event = filters_only.add_event(
    event_type="static",
    augmentations=2
)

2025-08-20 11:21:36.505 | INFO     | audiblelight.core:add_event:705 - Event added successfully: Static 'Event' with alias 'event000', audio file '/home/huw-cheston/Documents/python_projects/AudibleLight/tests/test_resources/soundevents/telephone/411581.wav' (unloaded, 2 augmentations), 1 emitter(s).

print(filtered_event.get_augmentations())

[{
    "name": "HighpassFilter",
    "sample_rate": 44100,
    "cutoff_frequency_hz": 239.83249382662646
}, {
    "name": "LowpassFilter",
    "sample_rate": 44100,
    "cutoff_frequency_hz": 19063.40137525111
}]

As a final tweak, we might want to ensure that the parameters we sample for every EventAugmentation are within a particular range, or have a given value.

To do this, we can pass event_augmentations as a list of tuples, where the first element is the EventAugmentation type and the second is a dictionary of keyword arguments to pass to it. These arguments can be either explicit values (in which case, that value will be used every time the EventAugmentation is sampled) or a Callable that returns values:

import numpy as np

# Create a Scene object
filters_only_kwargs = Scene(
    duration=50,
    mesh_path=utils.get_project_root() / "tests/test_resources/meshes/Oyens.glb",
    fg_path=utils.get_project_root() / "tests/test_resources/soundevents",
    max_overlap=1,  # no overlapping sound events allowed
    event_augmentations=[
        (LowShelfFilter, dict(cutoff_frequency_hz=500, gain_db=lambda: np.random.uniform(0, 0.1))),
        (HighShelfFilter, dict(cutoff_frequency_hz=5000, gain_db=lambda: np.random.uniform(0, 0.1)))
    ]
)

CreateContext: Context created

Material for category 'default' was not found. Using default material instead.

In this case, whenever we add an Event with augmentations, our filter will always have a cutoff at either 500 or 5000 Hz, with a gain of between 0 and 0.1 dB:

filters_only_kwargs.clear_events()
filtered_event_kws = filters_only_kwargs.add_event(
    event_type="static",
    augmentations=2
)

2025-08-20 11:21:38.868 | INFO     | audiblelight.core:add_event:705 - Event added successfully: Static 'Event' with alias 'event000', audio file '/home/huw-cheston/Documents/python_projects/AudibleLight/tests/test_resources/soundevents/telephone/30085.wav' (unloaded, 2 augmentations), 1 emitter(s).

print(filtered_event_kws.get_augmentations())

[{
    "name": "HighShelfFilter",
    "sample_rate": 44100,
    "cutoff_frequency_hz": 5000.0,
    "gain_db": 0.0067729024918738116,
    "q": 0.5313403568212344
}, {
    "name": "LowShelfFilter",
    "sample_rate": 44100,
    "cutoff_frequency_hz": 500.0,
    "gain_db": 0.023169297103648248,
    "q": 0.27914196992868523
}]

Serialising an EventAugmentation

As with all other AudibleLight objects, EventAugmentations can be loaded and unloaded from a dictionary. This enables reproducible results, using the same randomly sampled parameters.

To unserialise an EventAugmentation dictionary, use EventAugmentation.from_dict(dict): note that the particular child class (e.g., HighShelfFilter, Distortion) should not be used directly, here.

aug_1 = filtered_event_kws.get_augmentation(1)
dict_out = aug_1.to_dict()

aug_1_replicate = EventAugmentation.from_dict(dict_out)

We can confirm that the two augmentations are equal:

assert aug_1_replicate == aug_1

Note that explicitly serialising and unserialising EventAugmentation objects should rarely be necessary: calling Scene.to/from_dict or Event.to/from_dict will automatically load and unload any associated EventAugmentation objects automatically.

Creating custom EventAugmentations

AudibleLight ships with a wide variety of EventAugmentation classes that run out-of-the-box, using standard audio processing libraries like Pedalboard and librosa. But, for further customisation, you can also subclass EventAugmentation and provide your own logic.

All EventAugmentation classes must take in:

• the sample_rate to use;

• any additional keyword arguments

They must define:

• a params dictionary, holding all keyword arguments

  • necessary to allow the augmentation to be serialised and unserialised

• a fx property, linked to a Callable that applies the FX (can be a method of the class)

NB: although all EventAugmentation objects need to take in the sample_rate argument (and you may want to make use of it inside your class: see below), there is usually no need to worry about how this gets passed in. Whenever augmentations are registered to either a Scene or Event object, the correct sample rate will always be passed in as well.

from audiblelight.augmentation import EventAugmentation

class CustomLimiter(EventAugmentation):
    """
    A custom limiter that clips all samples above `thresh` during a given time period to `thresh`.

    For example, with `thresh=0.5, start=1, stop=2`, when `|sample_val| > 0.5` and `start < sample_time < stop`,
    `sample_val = +/- thresh`, depdending on the value of `sample_val`

    Arguments:
        sample_rate: the sample rate to use in audio processing
        thresh: the threshold above which limiting will be applied, sampled between 0.5 and 0.75 if not given
        start: the starting period for limiting, sampled between 0 and 1 second if not given
        stop: the stopping period for limiting, sampled between 1 and 2 second if not given
    """

    MIN_THRESH, MAX_THRESH = 0.5, 0.75
    MIN_START, MAX_START = 0, 1
    MIN_STOP, MAX_STOP = 1, 2

    def __init__(
        self,
        sample_rate: custom_types.Numeric = config.SAMPLE_RATE,
        thresh: custom_types.Numeric = None,
        start: custom_types.Numeric = None,
        stop: custom_types.Numeric = None,
    ):
        super().__init__(sample_rate)

        # Either use override values, or sample from the distribution
        self.thresh = utils.sanitise_positive_number(
            self.sample_value(
                thresh,
                lambda: np.random.uniform(self.MIN_THRESH, self.MAX_THRESH)
            )
        )
        self.start = utils.sanitise_positive_number(
            self.sample_value(
                start,
                lambda: np.random.uniform(self.MIN_START, self.MAX_START)
            )
        )
        self.stop = utils.sanitise_positive_number(
            self.sample_value(
                stop,
                lambda: np.random.uniform(self.MIN_STOP, self.MAX_STOP)
            )
        )
        if self.stop < self.start:
            raise ValueError("Start time must be before stop time!")

        self.params = dict(thresh=self.thresh, start=self.start, stop=self.stop)

        self.fx = self._apply_fx

    # Note that _apply_fx must also take arbitrary arguments
    def _apply_fx(self, input_audio: np.ndarray, *_, **__) -> np.ndarray:
        """
        Applies the FX to the input audio
        """
        a_out = input_audio.copy()

        # Normalize input to peak at 1.0
        max_val = np.max(np.abs(a_out))
        if max_val > 0:
            a_out = a_out / max_val

        # Get starting and stopping sample, clamped to audio bounds
        start_sample = max(0, round(self.sample_rate * self.start))
        stop_sample = min(round(self.sample_rate * self.stop), len(a_out))

        # Apply clipping in the specified range
        a_out[start_sample:stop_sample] = np.clip(
            a_out[start_sample:stop_sample],
            -self.thresh,
            self.thresh
        )

        return a_out

Now, we can use our CustomLimiter exactly as defined above.

Note that we can also pass in callables to any argument to randomly sample a value (see the documentation for EventAugmentation.sample_value).

sc.clear_events()
ev_custom = sc.add_event(
    event_type="static",
    augmentations=[
        CustomLimiter(
            thresh=lambda: np.random.uniform(0.2, 0.3),
            start=0.5,
            stop=1.5
        )
    ],
    filepath=utils.get_project_root() / "tests/test_resources/soundevents/music/000010.mp3"
)
print(ev_custom.get_augmentations())

2025-08-20 11:21:39.425 | INFO     | audiblelight.core:add_event:705 - Event added successfully: Static 'Event' with alias 'event000', audio file '/home/huw-cheston/Documents/python_projects/AudibleLight/tests/test_resources/soundevents/music/000010.mp3' (unloaded, 1 augmentations), 1 emitter(s).

[{
    "name": "CustomLimiter",
    "sample_rate": 44100,
    "thresh": 0.294860214416647,
    "start": 0.5,
    "stop": 1.5
}]

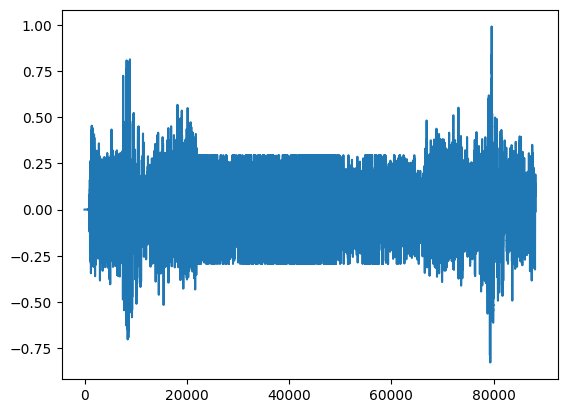

If we process the audio and plot the waveform, we can see that the effect is applied successfully: during the time period specified, no audio sample exceeds the threshold.

import matplotlib.pyplot as plt

audio_out = ev_custom.load_audio(ignore_cache=True)
# Truncate to within bounds
audio_trunc = audio_out[:round(ev_custom.sample_rate * 2.0)]

plt.plot(audio_trunc)
plt.show()

Scene Augmentations

TODO
